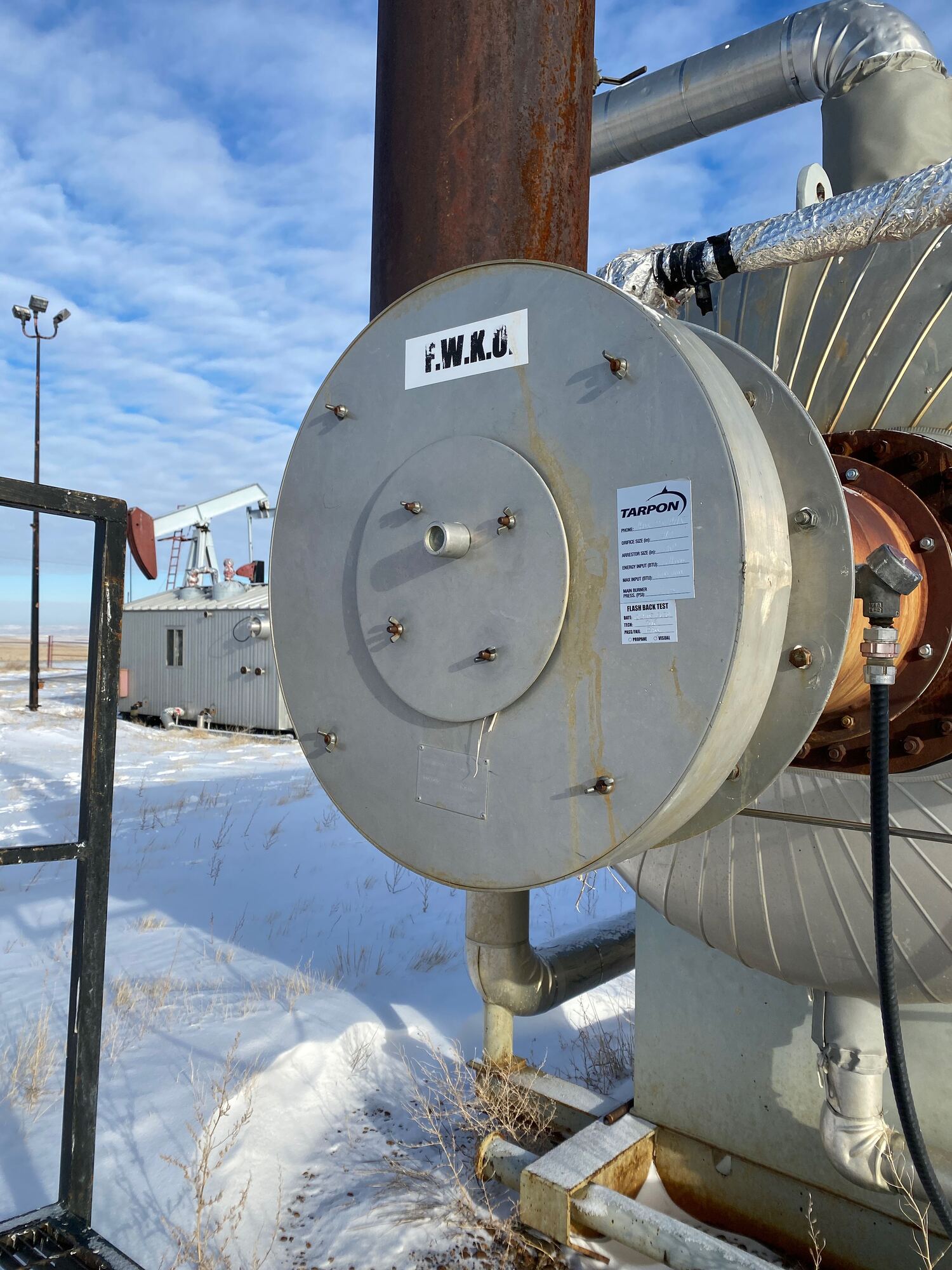

72" x 22' (EST) 150 PSI Horizontal FWKO

Download Images

72" x 22' (EST) 150 PSI Horizontal FWKO

N/A

Listing ID 48882
Company Fuelled
Status Sold
Year Built 1998
Condition B

Treater Information

Diameter 72"
Height/Length 22'
ANSI Rating N/A
Sour Service No
Duty (BTU/hr) 1000000
Packaged Yes
Orientation Horizontal
Treater Type Conventional
Manufacturer WestFab

Pricing Information

Price

Serial Numbers

A# 438872
CRN# M3004.23
Serial# WF98840

Location

Operating Area N/A

Description

QR: 13436

Take a virtual walkthrough: https://youtu.be/Bgk4qGgSni0

Treater Tag*

WestFab

Horisontal Treater

RT-2

MAWP: 150 PSI @ 300°F

MDMT: -20°F @ 150 PSI

Serial#: WF98840

Year Built: 1998

CRN: M3004.23

A#: 438872

Scrubber Tag*

Energy Industries LTD

RT-1

MAWP: 720 PSI @ 120°F

MDMT: -20°F @ 720 PSI

CA: .0625"

Serial#: ES13599

Year Built: 1989

CRN: H1981.2

A#:2544205

Flame Aressted Burner Tag*

Model: FAH20-16

Serial #: 9804-001

BTU: 1.0 MM

Tarpon Tag

Orfice Size: #12

Arrestor Size: 20"

Energy Input: 804,000 BTU

Max Input: 800,000 BTU

Main Burner Pressure: 8 Ps.
