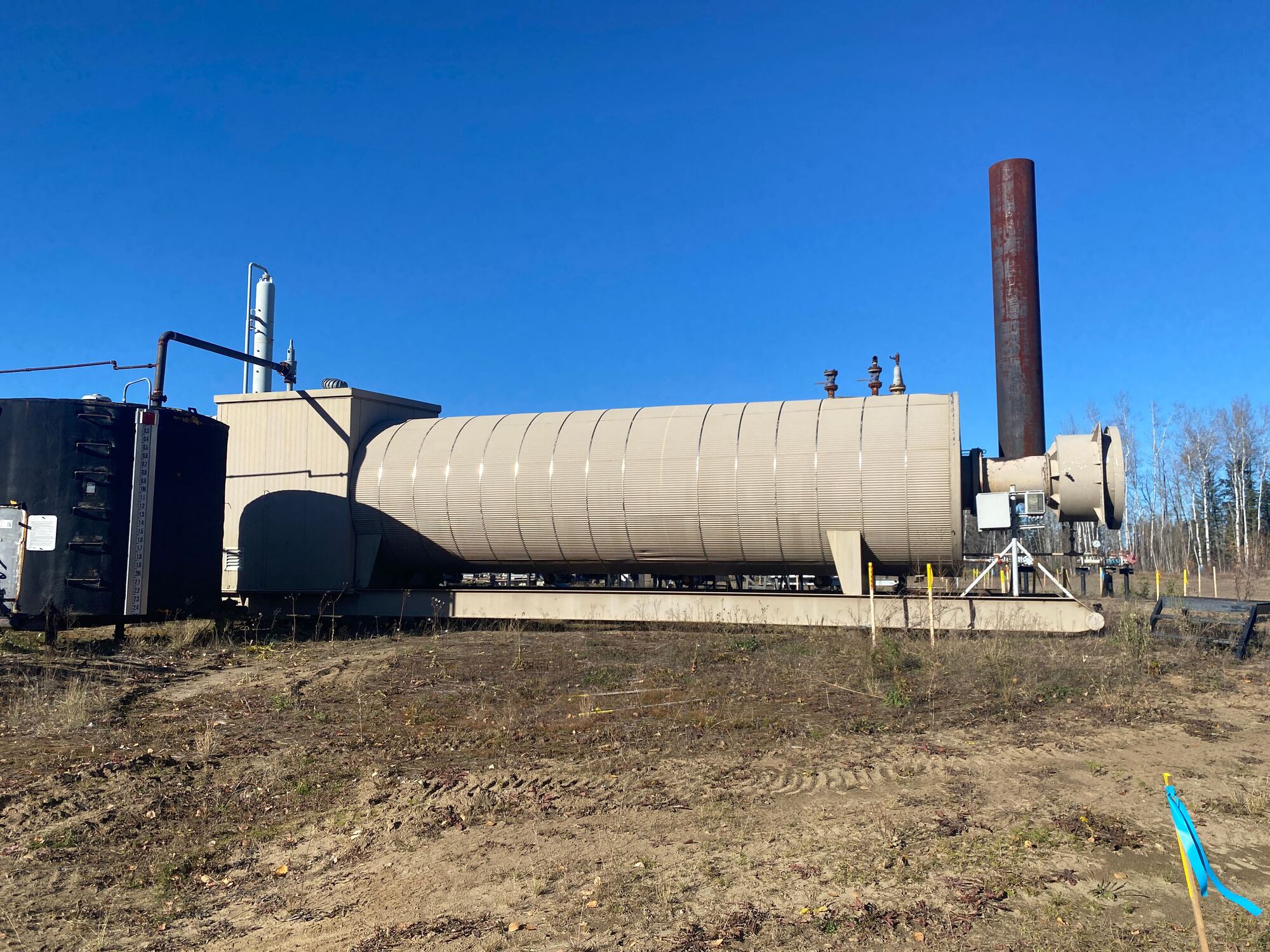

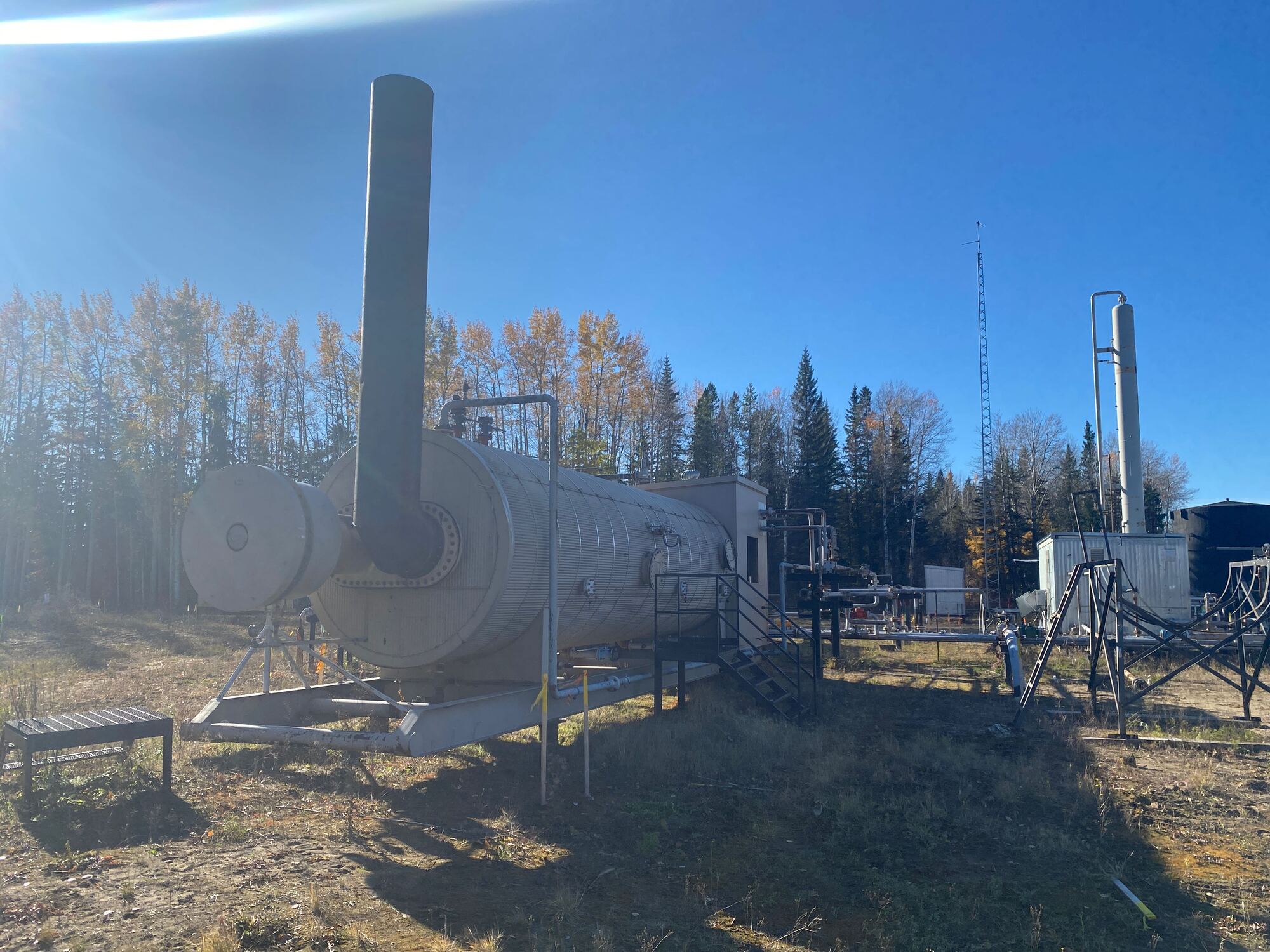

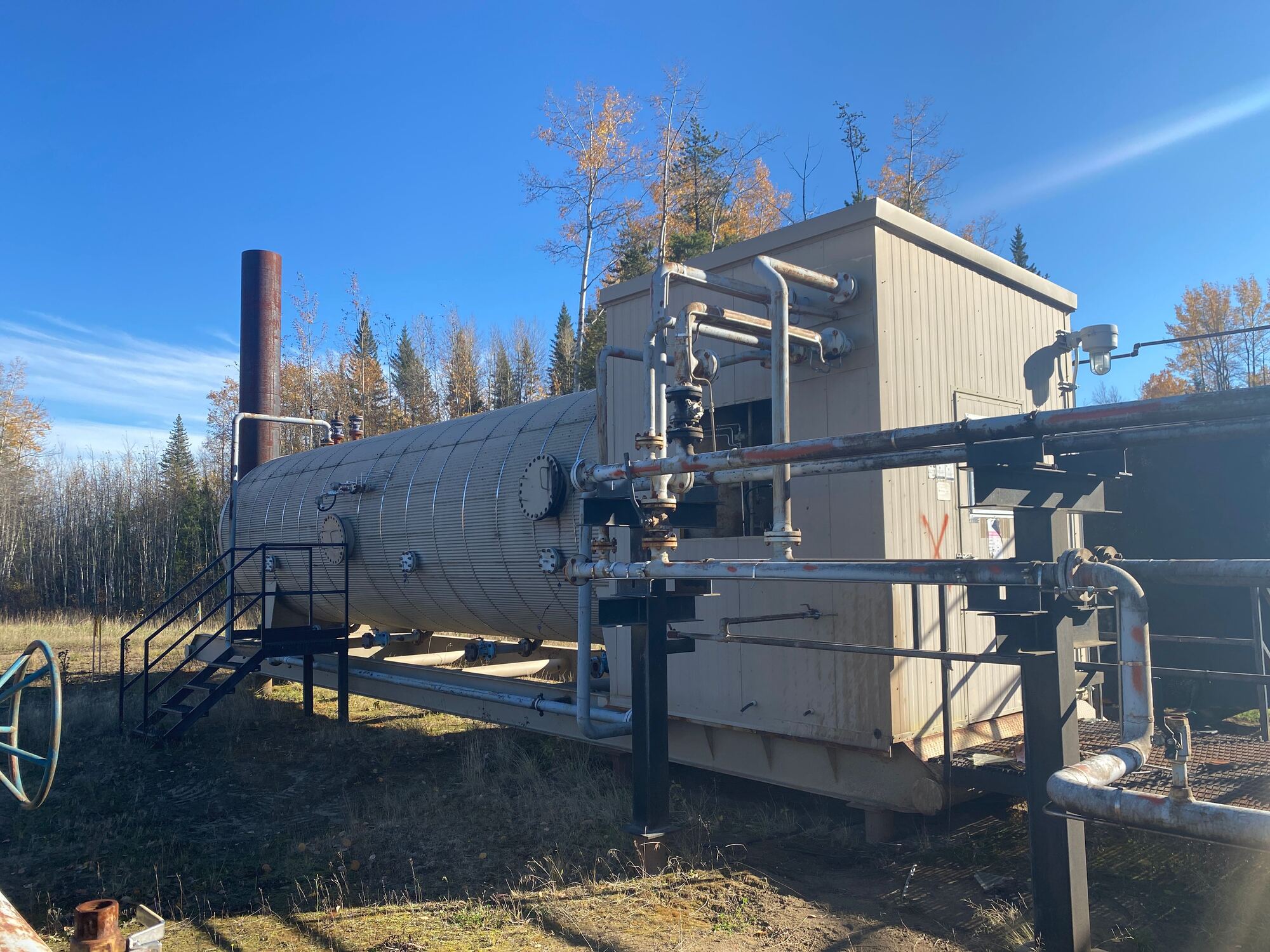

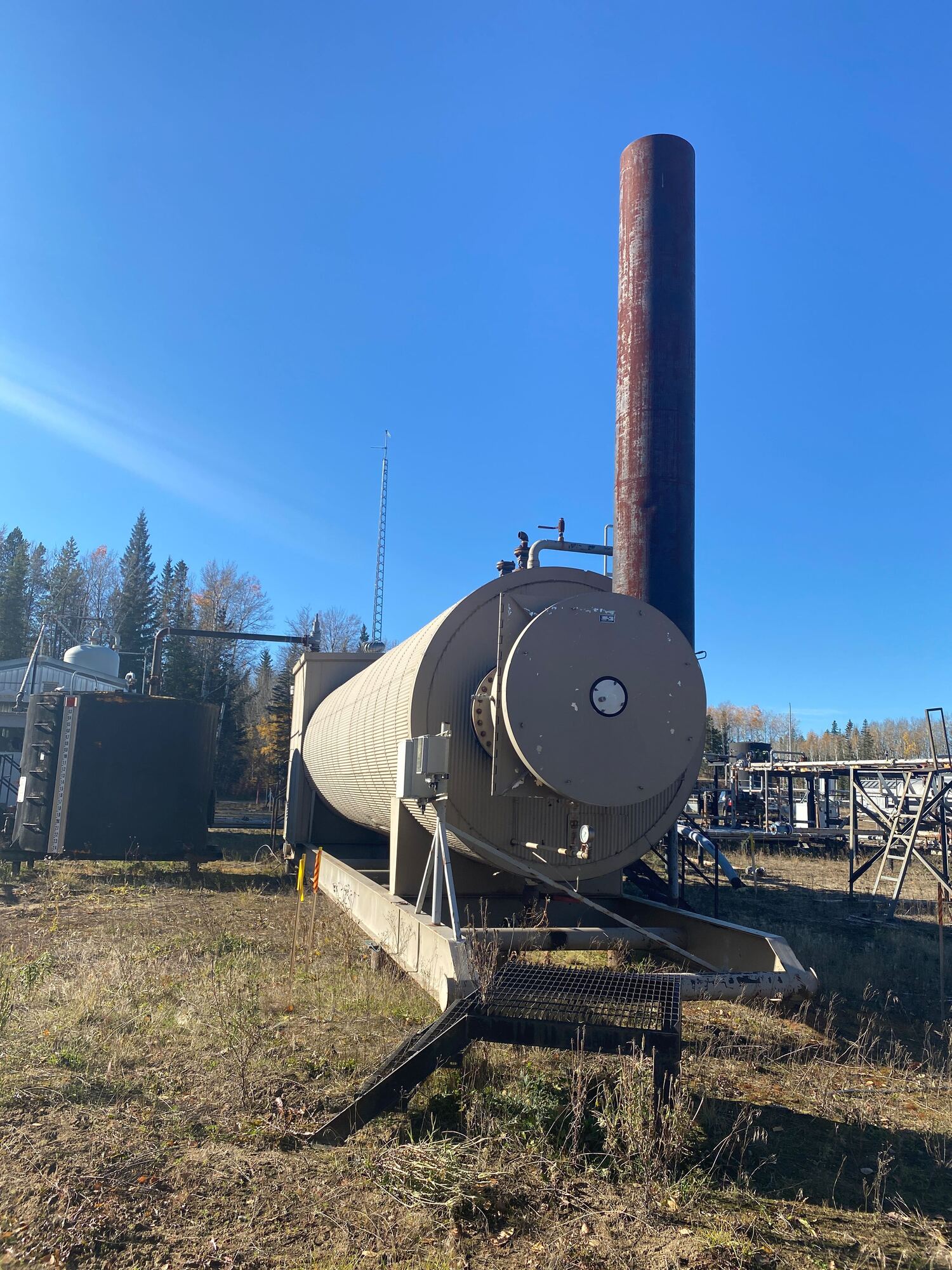

96" x 30' 2.7MMBTU 75 PSI Horizontal Sweet Treater

Download Images

96" x 30' 2.7MMBTU 75 PSI Horizontal Sweet Treater

N/A

Listing ID 48361
Company Fuelled
Status Sold
Year Built 2006
Condition C

Treater Information

Diameter 96"
Height/Length 30'
ANSI Rating N/A
Sour Service No
Duty (BTU/hr) 2700000
Packaged Yes
Orientation Horizontal
Treater Type Conventional
Manufacturer J.W. Williams Inc.

Pricing Information

Price

Serial Numbers

A# 534037
CRN# A5690.3
Serial# 16802-01

Location

Operating Area N/A

Description

QR: 13686

Take a Virtual Walkthrough: https://youtu.be/aJkM-8PV1y0

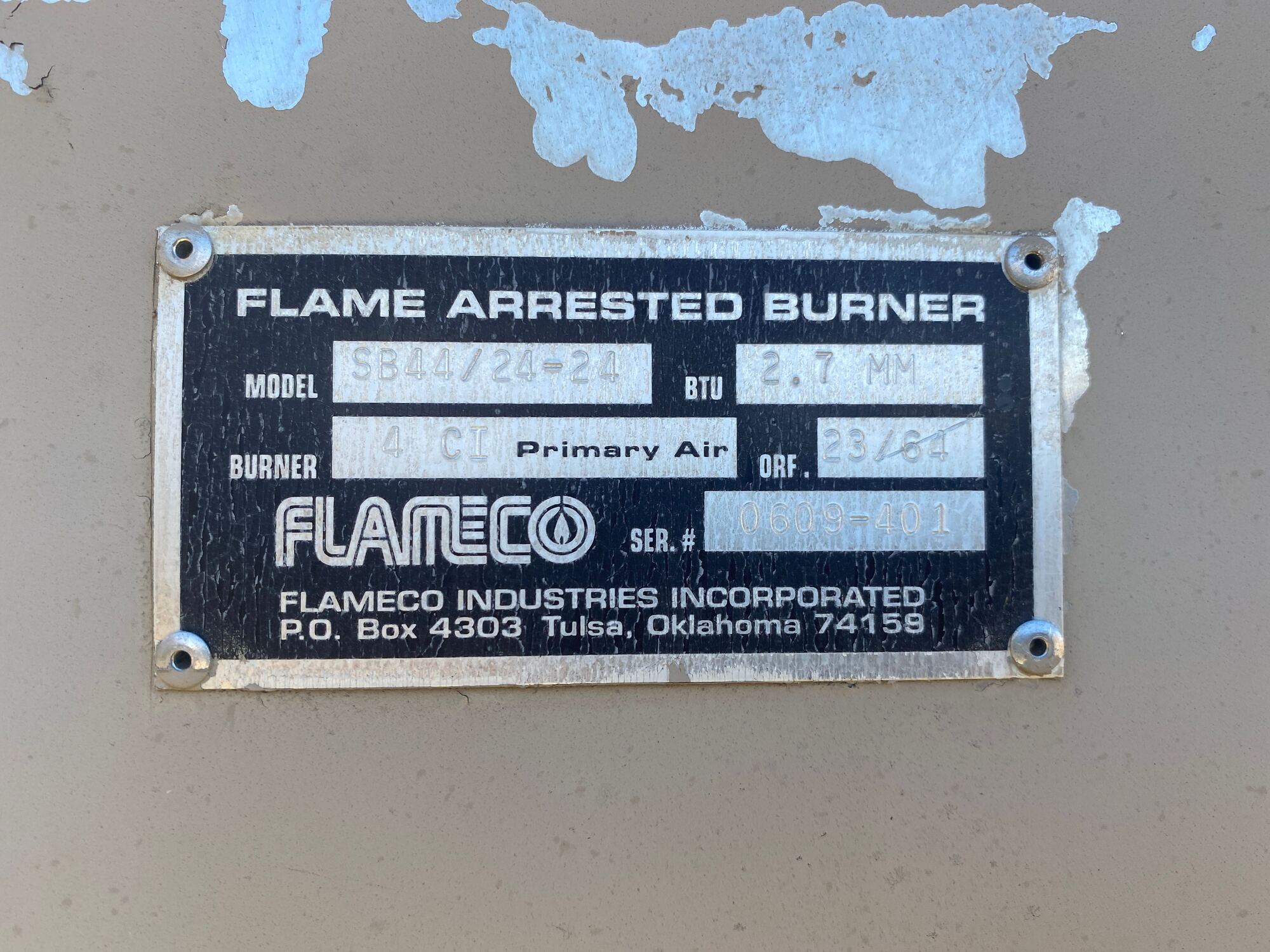

Flame Aressted Burner Tag*

Flameco Industries Incorporated

Model: SB44/24-24

BTU: 2.7 MM

Burner: 4 CI Primary Air

ORF: 23/64

S/N: 0609-401

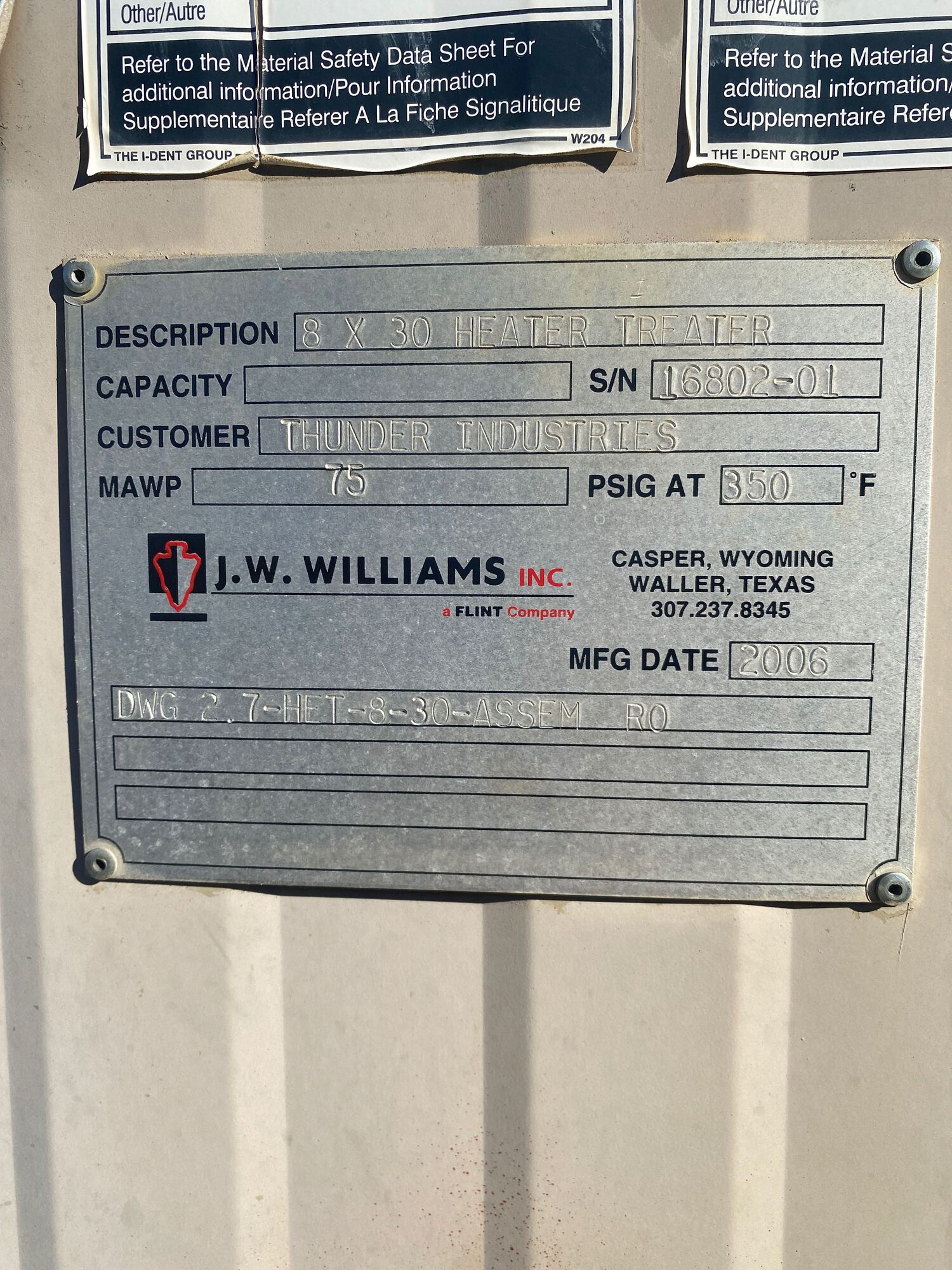

Door Tag*

J.W. Williams Inc.

Description: 8' X 30" Heat Treater

S/N: 16802-01

Customer: Thunder Industries

MAWP: 75 Psig @ 350 F

Year Blt: 2006

Notes: DWG 2.7-HET-8-30-ASSEM RO

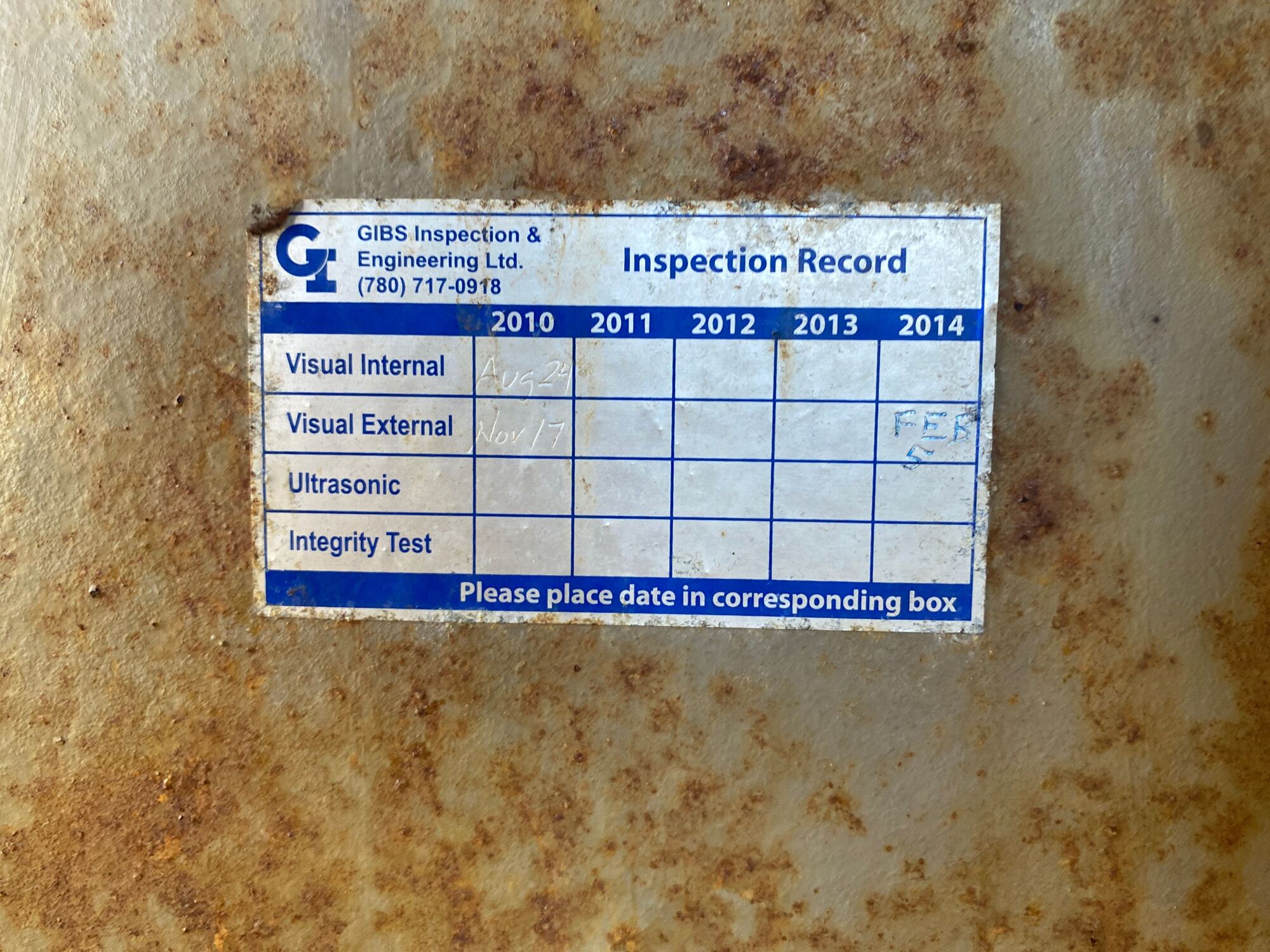

Inspection Tag*

GIBS Inspection & Engineering Ltd.

Visual Internal: 8/2010

Visual External: 11/2010

Visual External: 2/2014

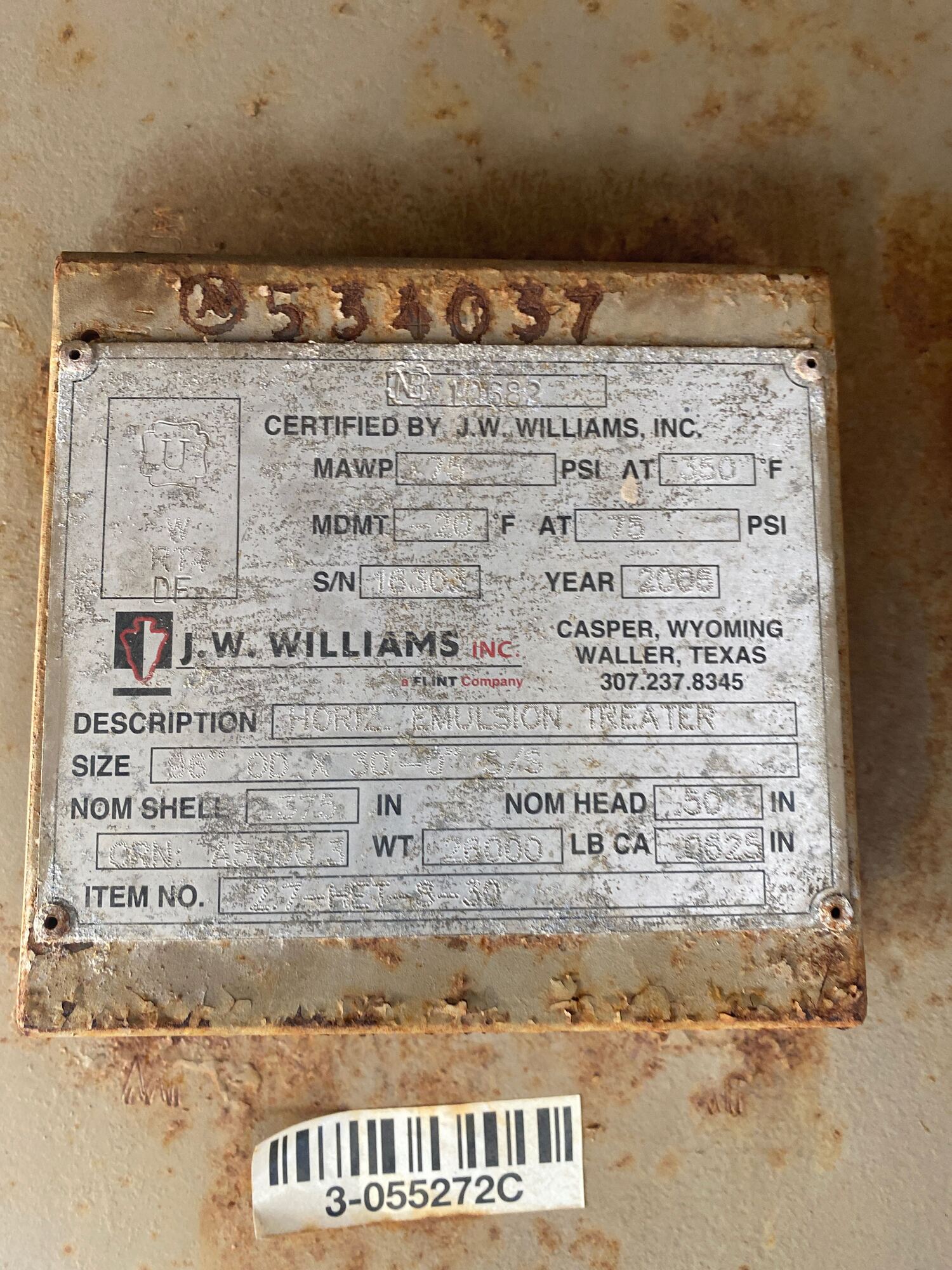

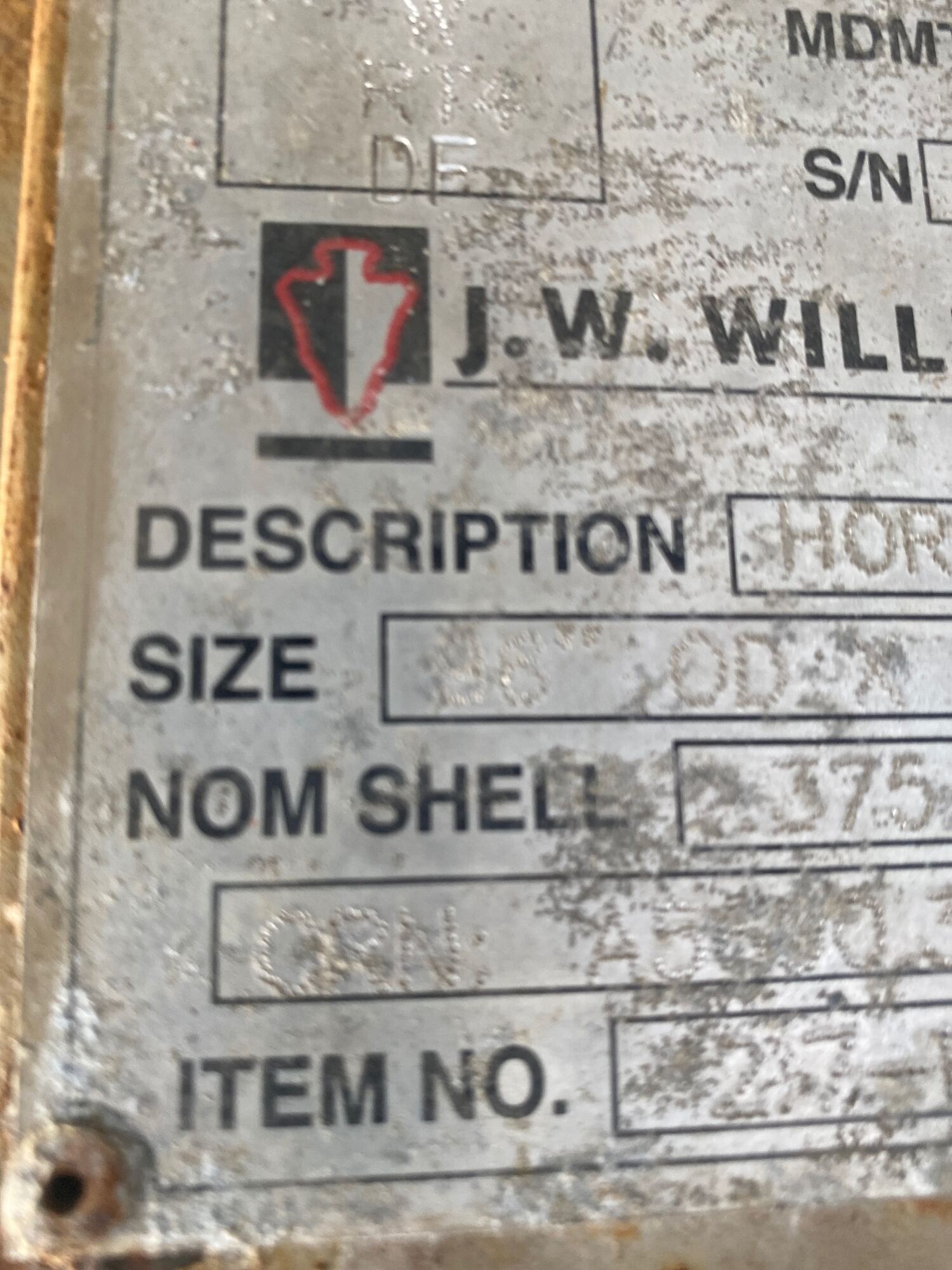

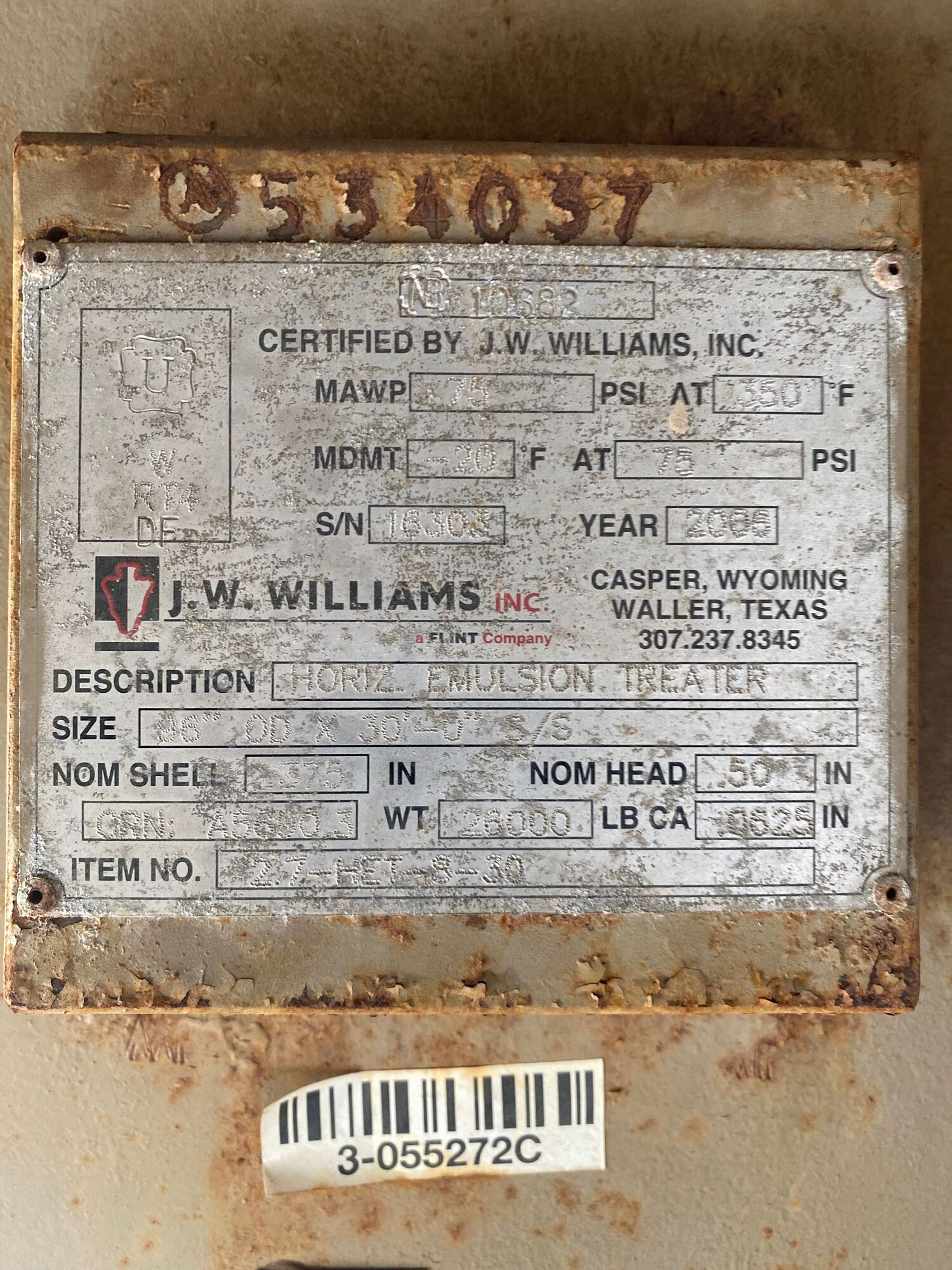

Treater Tag*

J.W. Williams Inc.

RT-4

MAWP: 75 Psi @ 350 F

MDMT: -20 F @ 75 PSI

S/N: 16303

CRN: A5690.3

A#: 534037

Year: 2005

Size: 96" OD. X 30'-0" S/S

Description: Horizontal Emulsion Treater

Nom Shell: 0.375"

Nom Head: 0.5"

WT: 26000lbs

CA: 0.0625

Item#: 2.7-HET-08-30

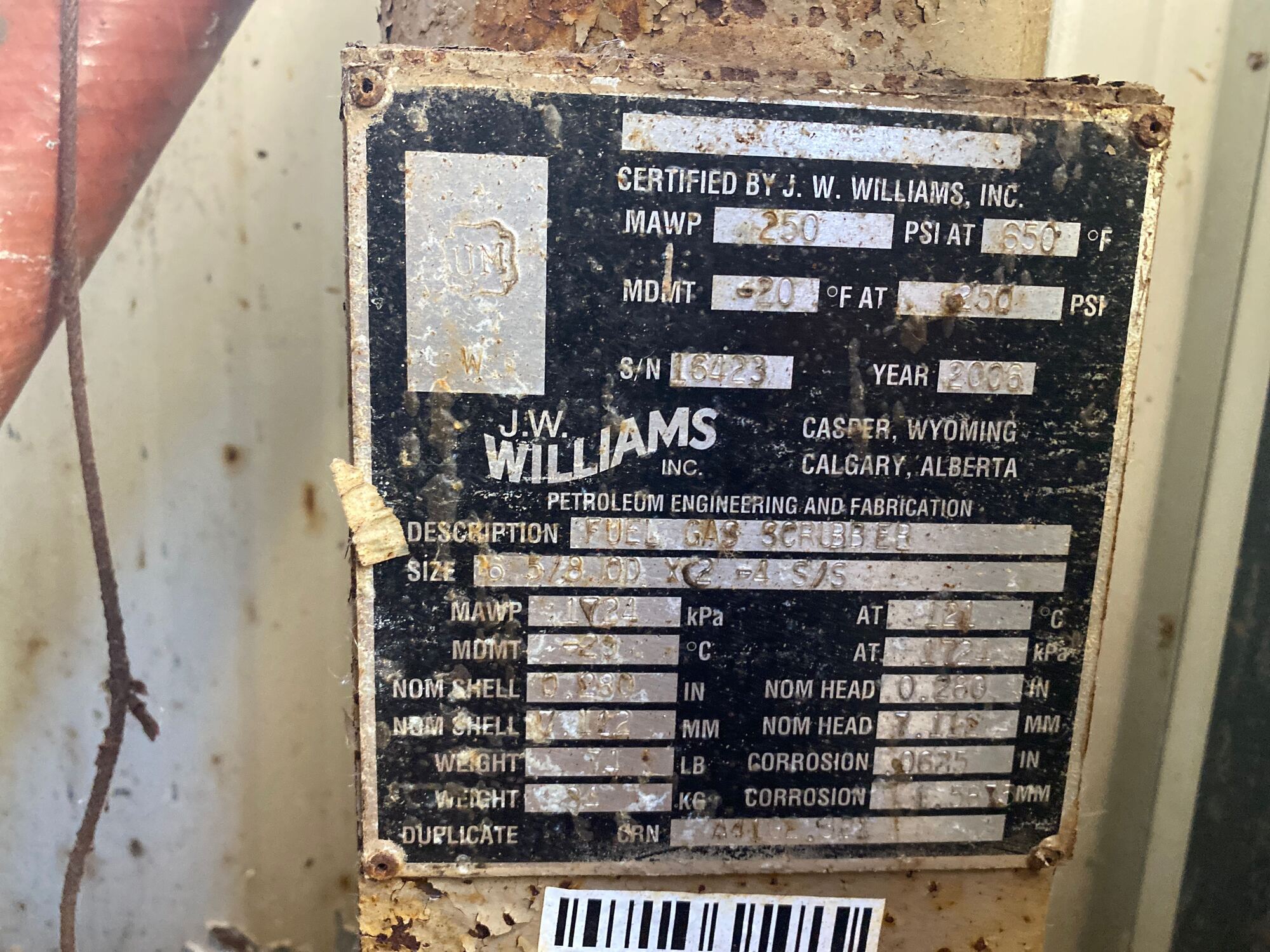

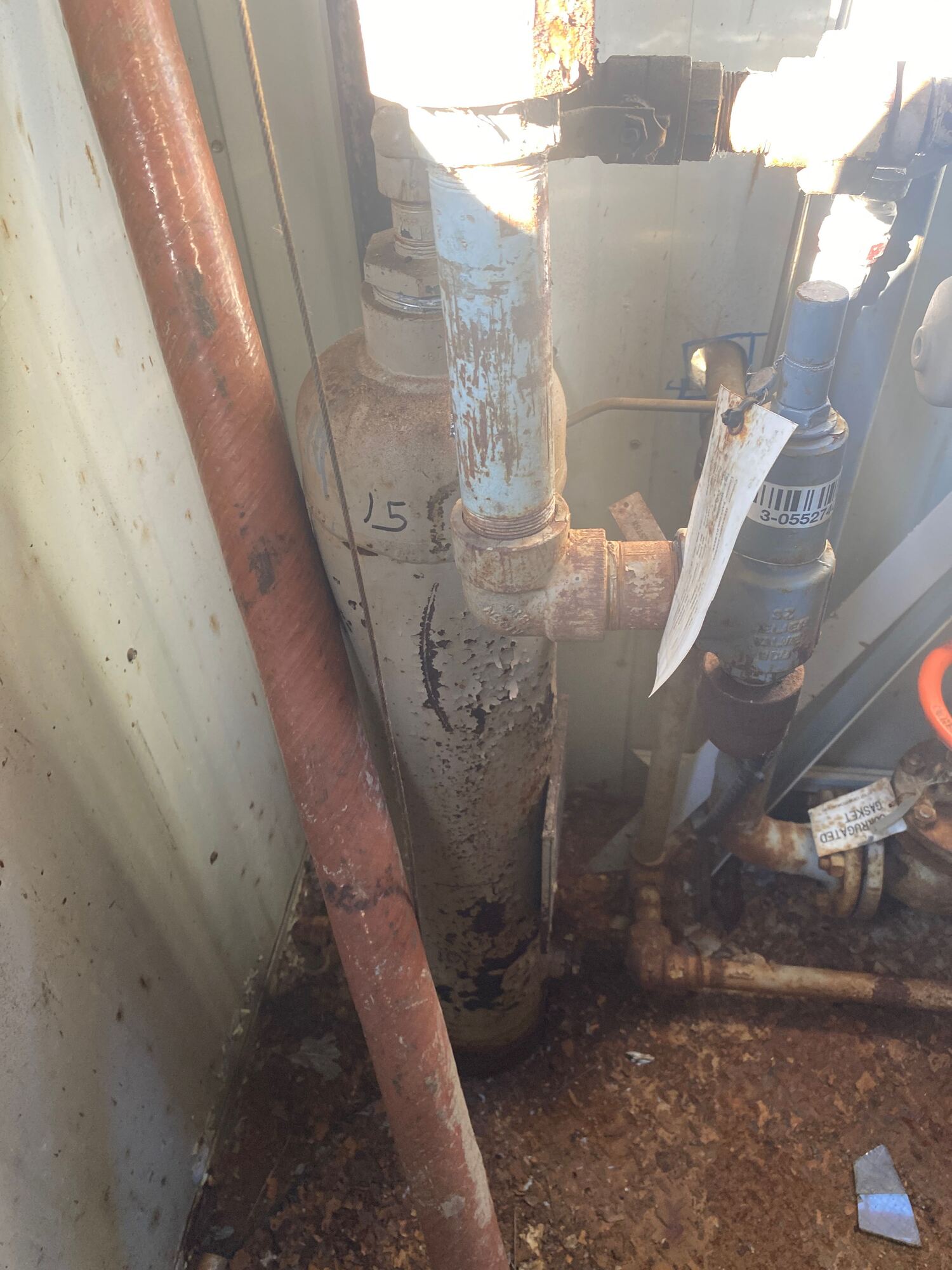

Gas Scrubber Tag*

J.W. Williams Inc.

MAWP: 250 Psi @ 650F

MDMT: -20F @ 250 Psi

Year: 2006

S/N: 16423

CRN: A4162.321

Description: Fuel Gas Scrubber

Size: 6 5/8" OD X 2-4 S/S

Nom Shell: 0.280"

Nom Head: 0.280"

WT: 71lbs

CA: 0.0625
