DEHYDRAYTOR

Fort St. John Central

Listing ID 27223
Company Canadian Natural Resources Limited
Status Scrap
Year Built 2001
Condition B

Dehydrator Information

Diameter 24"
Reboiler Duty (BTU/hr) 375,000
Capacity (MMscfd)
MAWP (kPa) 9928
MAWP (PSI) 1440
Number of Trays
Sour Service Yes
Flash Tank No
Pump Style
Manufacturer ALCO

Pricing Information

Price

Serial Numbers

A# 506262
CRN# P-5021.213
Serial# 2004-7204-01B

Location

Operating Area Fort St. John Central

Description

1 - 24” O.D. x 30’-0” s/s glycol contactor (10 trays, 2-phase).

1 - 6⅝” O.D. x 4½” O.D. x 10’-0” s/s gas/glycol heat exchanger.

1 - ALCO 4” 600# ANSI sales gas meter run c/w Daniel Senior orifice fitting.

1 - ALCO 2” 150# ANSI fuel gas meter run c/w Daniel Senior orifice fitting.

2 - Fisher ROC 467 multivariable transmitters (supplied and installed by CNRL).

1 - 3” 600# RF Fisher 667ET/DVC 6010 back pressure control valve.

1 - 12¾” O.D. x 5’-0” s/s fuel gas scrubber.

1 - 375,000 BTU/hr. glycol reconcentrator c/w stripping column.

1 - 375,000 BTU/hr. flame arrestor (Zirco hinged type).

2 - Kimray 21015 PV glycol pumps.

1 - 1½” O.D. x 10’-0” LG four (4) pass air/glycol pump suction heat exchanger.

1 - Nowata 1SY2N high pressure glycol particulate filter.

1 - ALCO 8⅝” O.D. x 4’-0” high, low pressure charcoal filter.

1 - 12,000 BTU/hr. (110 V) catalytic building heater (electrical hookup by CNRL).

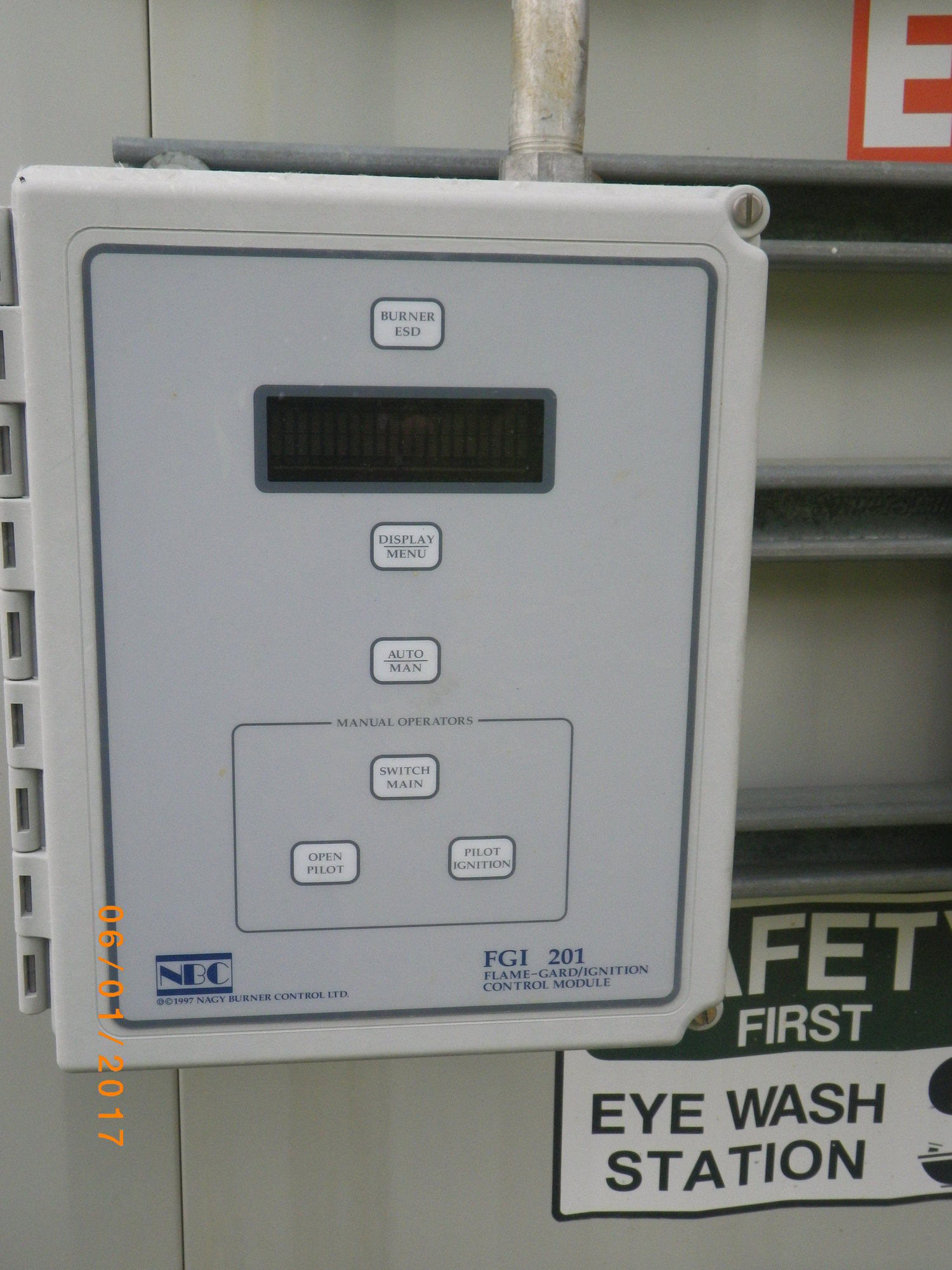

1 - Nagy FGI-201 flame-gard/ignition system (electrical hookup by CNRL).

1 - 10’-0” x 28’-0” structural steel skid c/w 2” thick Safethane insulation.

1 - 10’-0” x 20’-0” x 8’-0” minimum eave gable type self-framing pre-painted building.
